In July 2004, my friend Christine comes to visit from
Europe. Later that year, I make this mosaic as a birthday present
for her, and a souvenir of her visit to California.
This mosaic starts from a photo. We drive up the coast, and this
being her first time at the Pacific, Christine wants to dip her
toes. The water is cold, so knee-deep was as far as she gets. I
take the photo with my cheapie digital camera.
Avec sa robe
blanche elle ressemble à une aquarelle de Marie Laurencin.
I crop the image and tweak it a bit in
Gimp, then play with different
parameters to my Python program. I had 2000 black 12mm dice; this,
and the image's aspect ratio, dictates the mosaic's size -

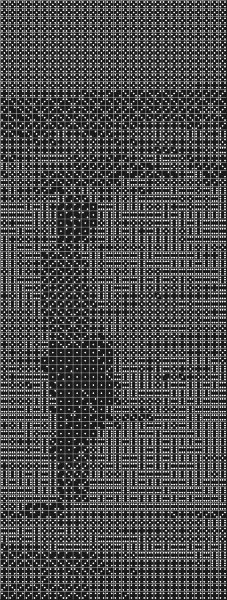

25x77. Here is one of several layout variants the program
generates.
I notice surprise when I find that the dice I receive from Koplow
are not entirely cubical, nor the same size. There is enough
variation between them that no two lines or columns are the same

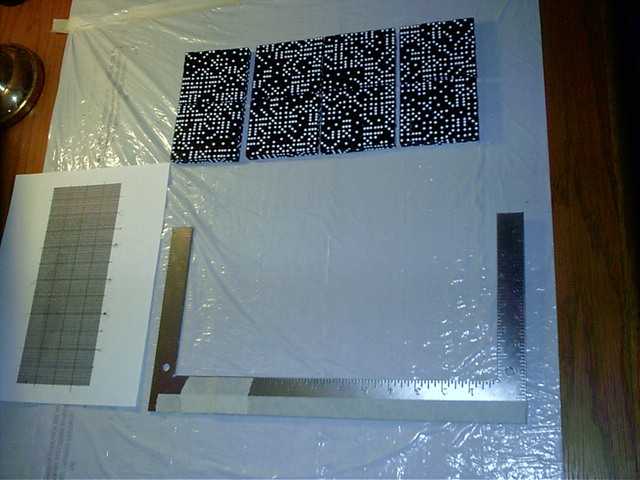

length if I lay the dice in tight rows. I madk a jig from two
straight-edges and which I join with masking tape. A printout is
visible on the left.
A complete mosaic is more than strong enough to carry its own
weight, but not nearly strong enough to survive in checked luggage

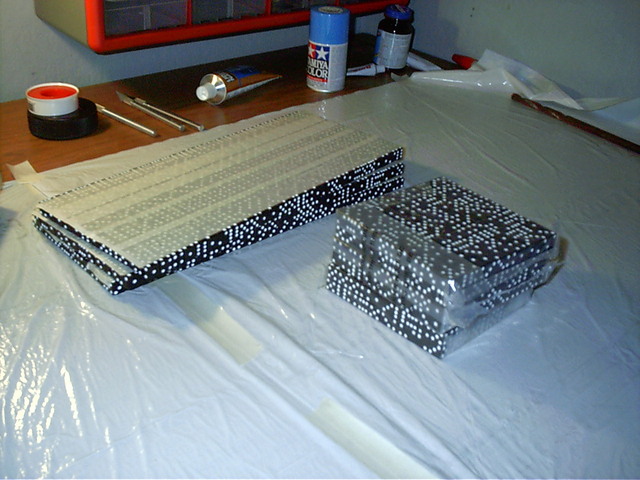

and too large to take as a carry-on. I make it in 6 pieces,
slicing the image horizontally into 25x13 tablets. 3 tablets are
ready; masking tape temporarily holds the dice together. The heap
contains 600 of the dice waiting for their turn.

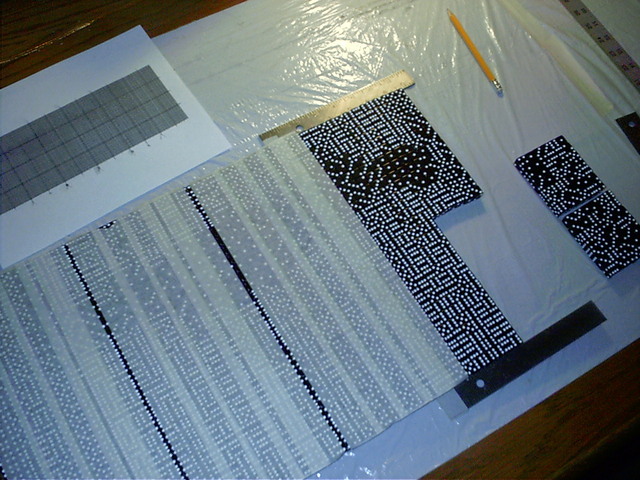

I make the jig wide enough for the widest 25 dice; I fill a few
rows, then wiggle the dice until they sit in neat rows, gaps
between them compensating for variation in size and shape. It is
important that columns line up not only within a tablet but also
between tablets. I check each new one against the ones that are
already complete.

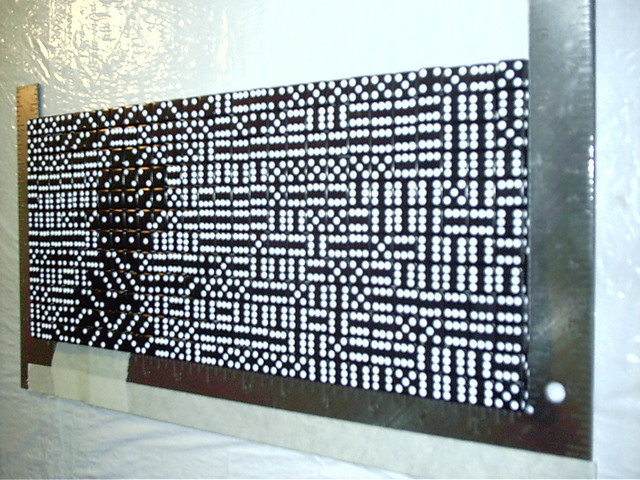

Christine's head is clearly visible in this, 4th tablet from the
bottom. After one last check, I apply wide masking tape to

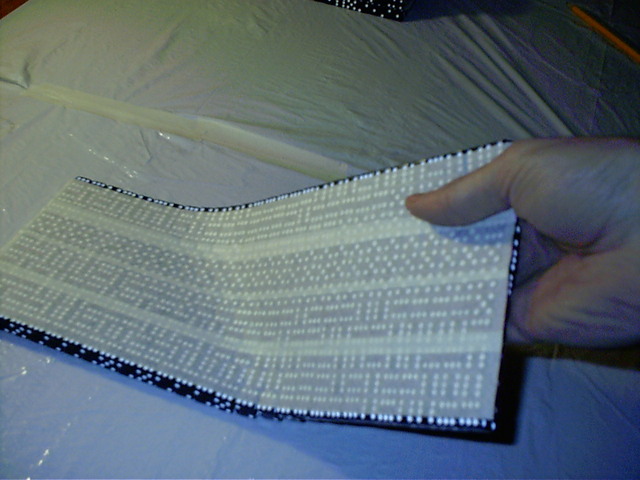

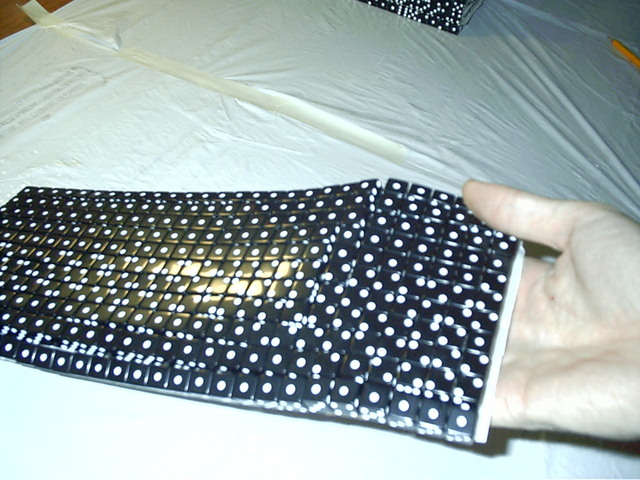

temporarily fasten dice together. The tape makes it possible to
flex a fragment to spread adhesive between dice without distorting
their layout.
Koplow dice are high-density acrylic that is very smooth and quite
inert chemically; finding a glue that would hold them securely is
an unexpected challenge for me. After some experimentation, I find

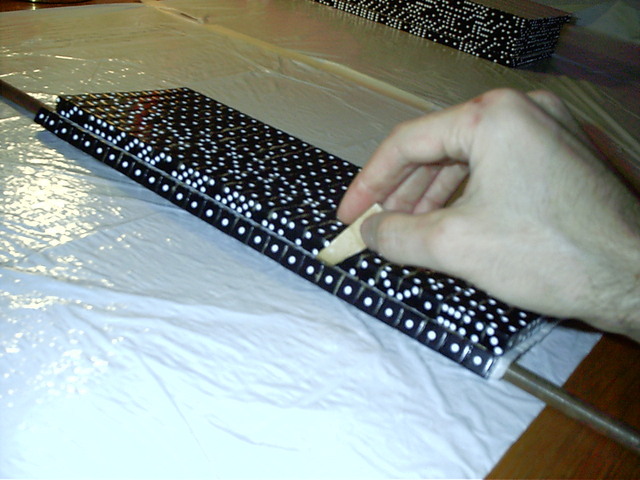

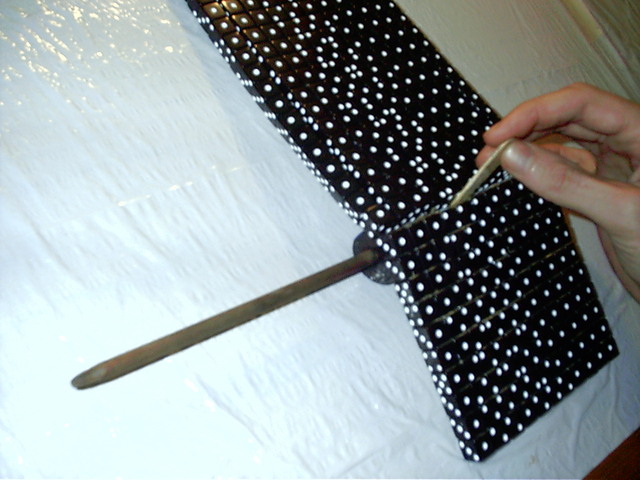

that polyurethane caulk holds the plastic well. I use a small
wooden paddle to apply the adhesive first across the columns, and
then across the rows.

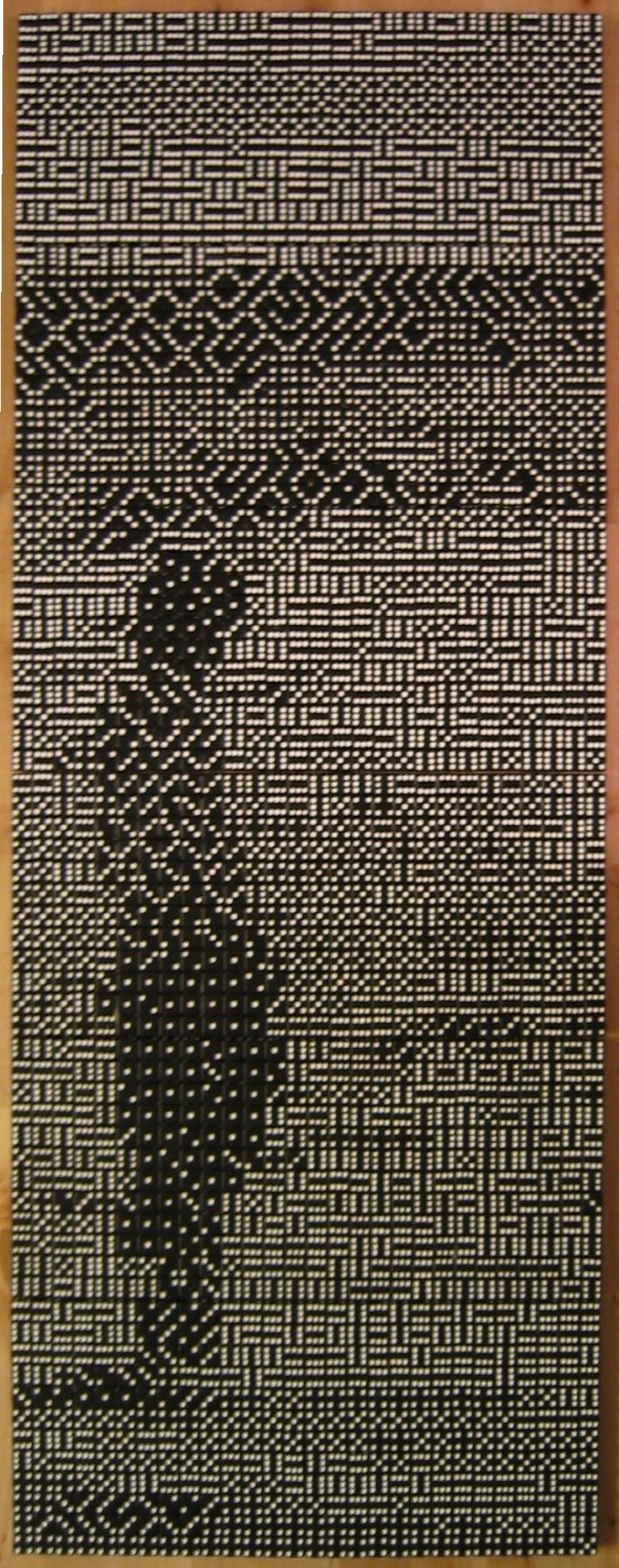

My friend Eugene helps
photograph the complete mosaic. Eugene has a better camera and a
better eye for lighting. He has me set the tablets on my kitchen
table, moves some lamps around, then climbes on a chair and

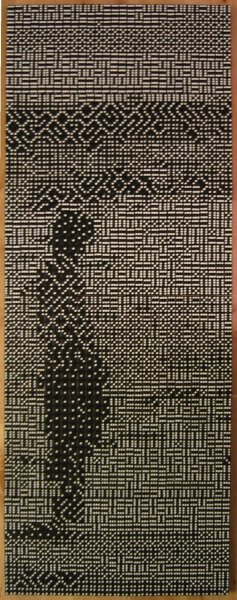

photographs the piece. The mosaic's 3' length is clearly
visible. Complete, it somehow looks much smaller than when I am
putting it together, one die at a time.
